SWC - WF non-stretch flange type universal coupling characteristics and applications: the connecting shaft transmission of two different axis, not cushion and vibration reduction, the whole fork structure, bearing fixed without bolt, to avoid the bolt looseness fault, easy maintenance, prolong service life, high reliability, large carrying capacity, large dip Angle, can be in beta 5 ° ~ 25 ° or less work under the working condition. Applicable to steel rolling machinery, lifting and transportation, construction machinery, petroleum machinery and other heavy machinery, in order to meet the requirements of different installation types, there are seven types of structure:

BH type -- standard telescopic welding type;

BF type -- standard expansion flange type;

DH type -- short stretch welding type;

CH type -- long expansion welding type;

WH type -- no expansion welding type;

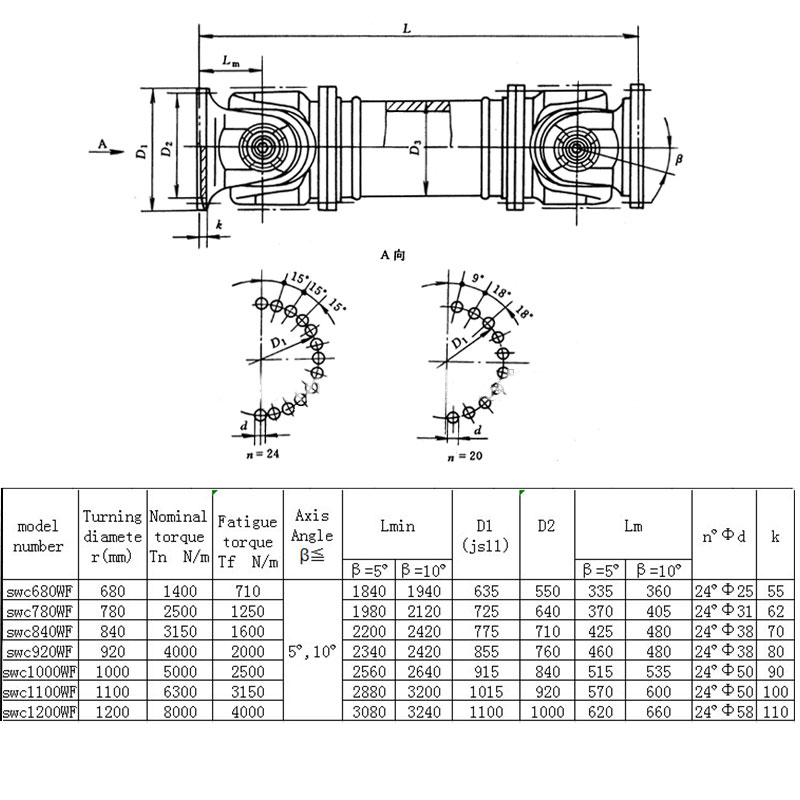

Type WF - no expansion flange type;

WD type -- no extension shorten type;
